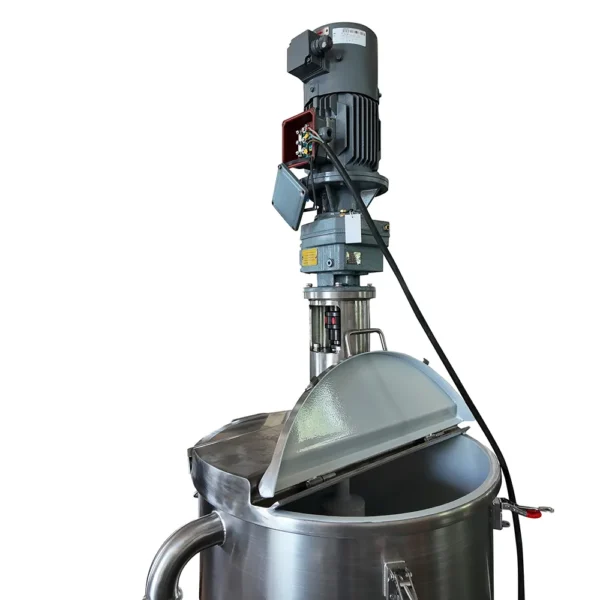

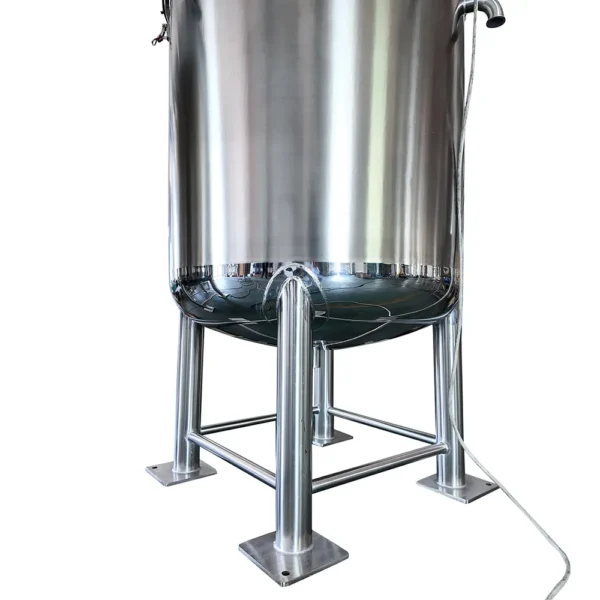

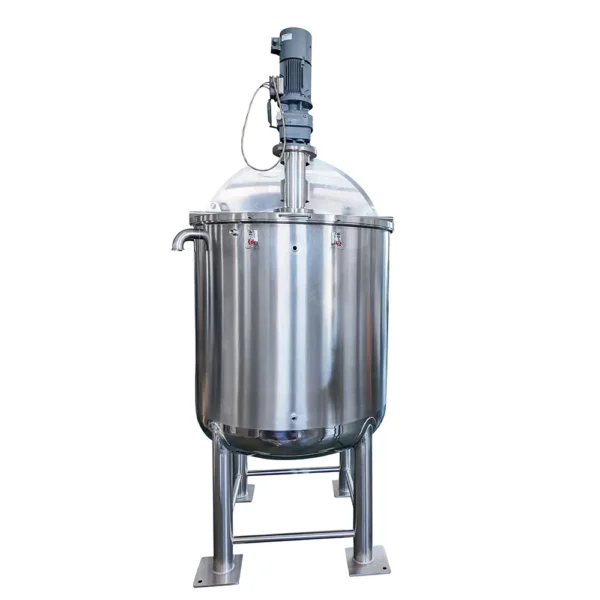

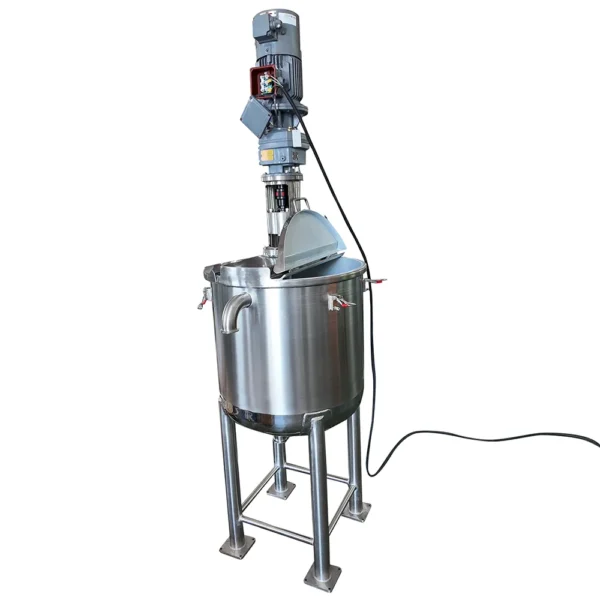

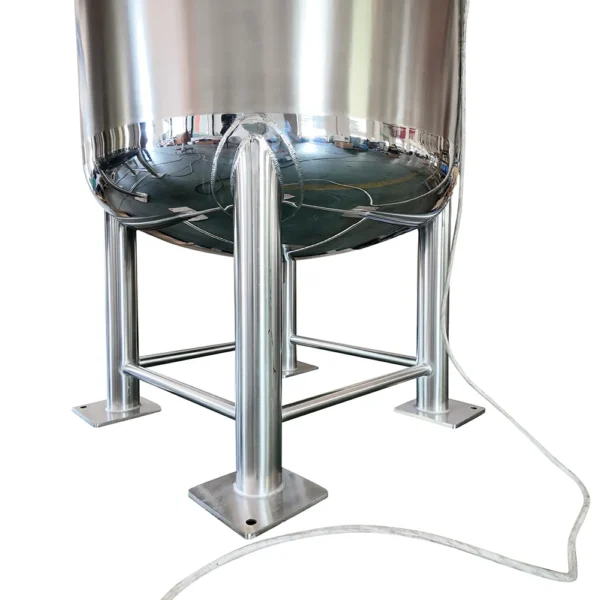

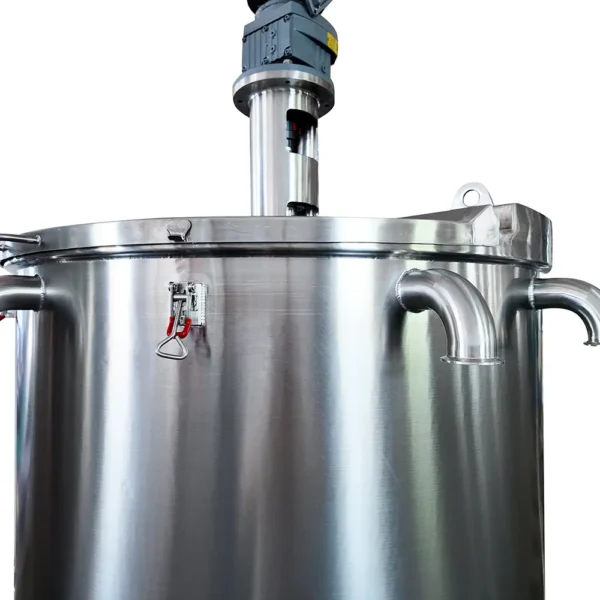

Flip Top Cover Mixing Tank
A flip top cover mixing tank is an industrial container characterized by a hinged or openable lid, an electric agitator, and a stainless steel tank body, used for mixing liquids, chemicals, or food.
Product Overview
A flip top cover mixing tank is an industrial container characterized by a hinged or openable lid, an electric agitator, and a stainless steel tank body, used for mixing liquids, chemicals, or food. Made of stainless steel of SS304, SS316L, SS2205 and so on.
Product Features
1. High-Quality Stainless Steel Construction
Made primarily of food-grade SS304 or medical-grade SS316L stainless steel, offering excellent acid and alkali resistance and durability. Meets the hygiene requirements of the food and pharmaceutical industries, suitable for processing high-cleanliness and corrosive materials.
2. Easy to Clean
Internal mirror polishing and external sandblasting effectively prevent residue and bacterial growth, avoiding cross-contamination, facilitating cleaning and disinfection, and resulting in a clean and aesthetically pleasing appearance.
3. Customizable Structure
Single-layer, double-layer, and multi-layer structures can be customized to meet customer needs, supporting heating, cooling, and insulation processes. A sealed structure effectively prevents liquid leakage. Vertical or horizontal configurations are available to meet diverse requirements.

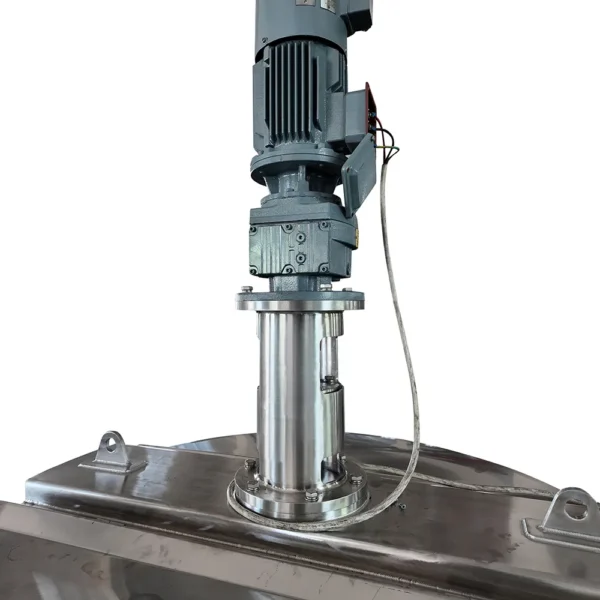

4. Customizable Agitators
Agitators with different blades and speeds can be customized to meet customer needs. Various agitator types are available, including propeller, paddle, turbine, dispersion, and frame agitators, to adapt to different material viscosities. Ensures uniform mixing and homogeneity, eliminating material stratification and sedimentation.
5. Customizable Capacity
The tank volume can be fully customized to cover laboratory pilot production, medium-batch production, and large-scale industrial production.
Technical Parameters
| Parameter | Description |
|---|---|
| Material | SS304 / SS316L / SS2205 / Titanium |
| Capacity | 30L – 50000L |
| Thickness | 1.5mm – 15mm, Customizable according to customer requirements |
| Tank Diameter | 100-3000mm, Customizable according to customer requirements |
| Tank Height | 100-10000mm, Customizable according to customer requirements |
| Design Pressure | Positive pressure, negative pressure, or ATM |
| Working Temperature | -50℃ ~ 300℃, Customizable according to customer requirements |
| Surface Treatment | Mirror polishing, matte, or sandblasting |
| Connection | Flange, clamp, thread and customer requirements |
| Agitator Type | Propeller, paddle, turbine, dispersion, frame or customized |
| Mixing Speed | Variable speed options available |
| Accessories | Thermometer, level gauge, pressure gauge, CIP cleaning spray ball, manhole, etc. |
