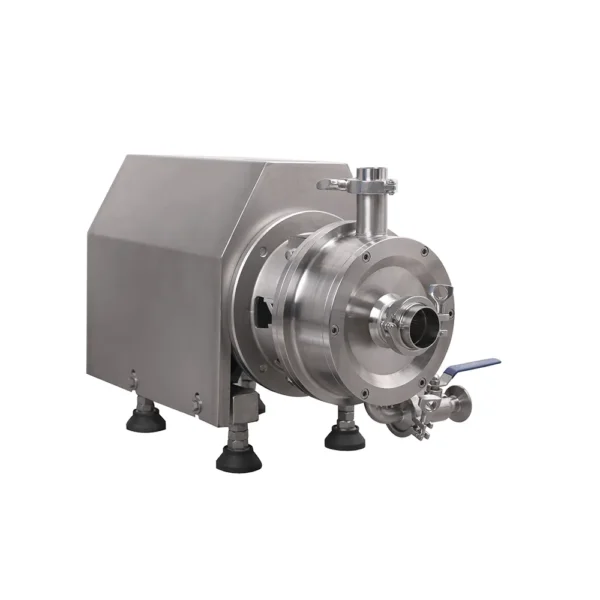

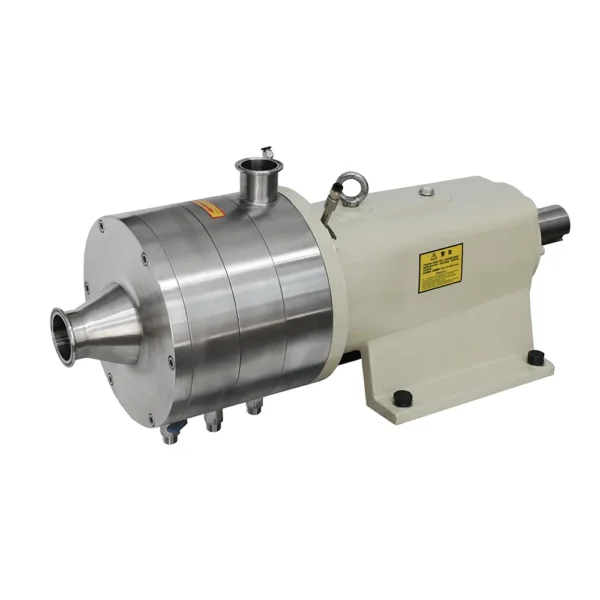

Emulsifying Pump / High-shear Homogenizing Pump

Product Overview

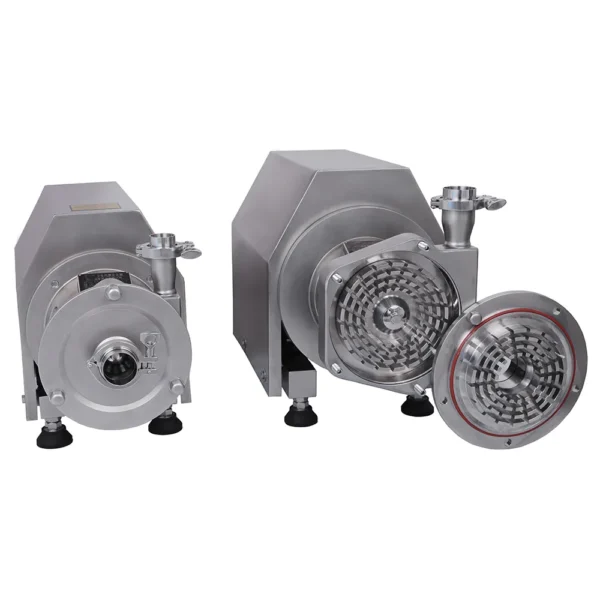

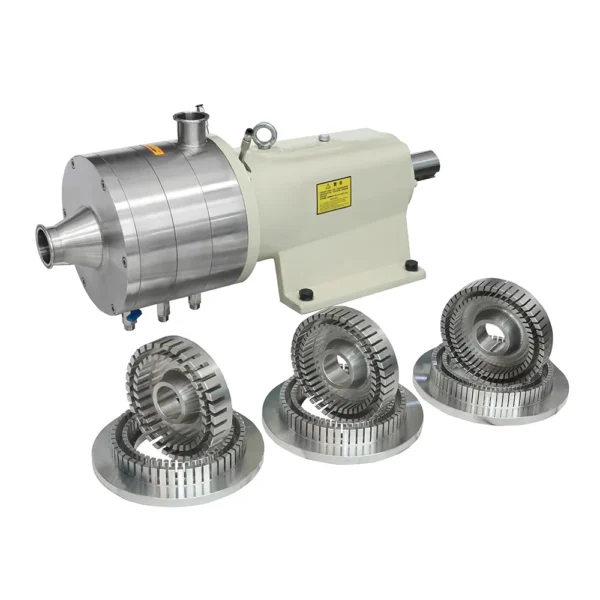

An emulsifying pump, also known as a high-shear homogenizing pump, is an online device that mixes immiscible substances into a stable, homogeneous emulsion. It utilizes a high-speed rotor and stator to apply intense mechanical and hydraulic shearing forces to the material, thereby rapidly reducing particle size. This device is suitable for multiple fields such as daily chemicals, food, and pharmaceuticals, and can be applied to the production processes of emulsified asphalt and modified asphalt.

Features

1. Integrates grinding, dispersion, and homogenization into a single process; modular structure facilitates installation.
2. Suitable for batch circulating dispersion and emulsification processes as well as online continuous dispersion and emulsification processes, eliminating batch-to-batch quality variations.
3. Capable of handling high-viscosity materials with a smooth, dead-angle-free surface.

Optional

1. Motor explosion-proof rating: Explosion-proof or non-explosion-proof
2. Motor energy efficiency rating: Standard configuration is level 3 energy efficiency
3. Pipe connection type: Flange, triple clamp, threaded union
4. Sealing ring: Fluororubber, perfluoropolymer, fluoropolymer-coated ring
5. Bearing: NSK, SKF, or domestic brand
6. Mechanical seal coolant system: Self-configured on-site or provided by the manufacturer

Technical Parameter
