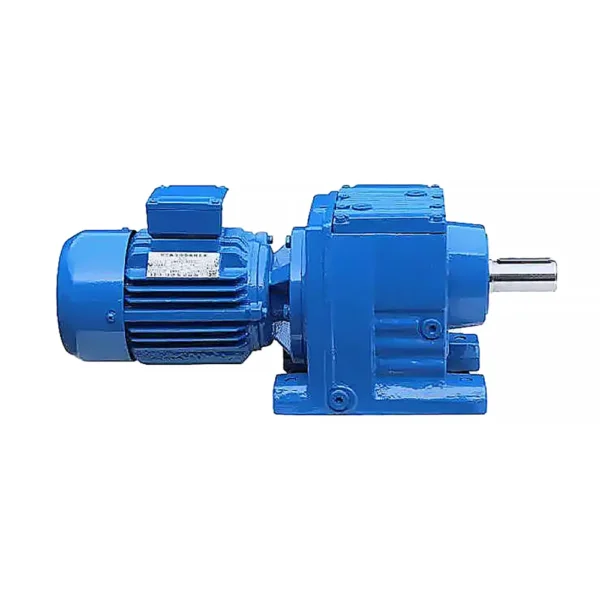

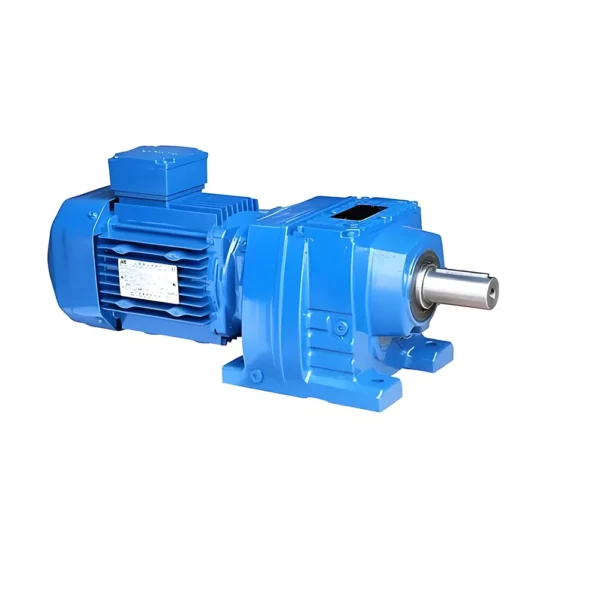

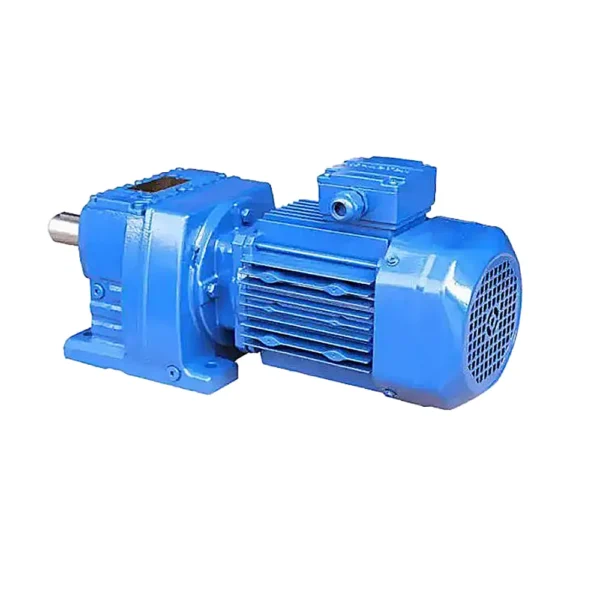

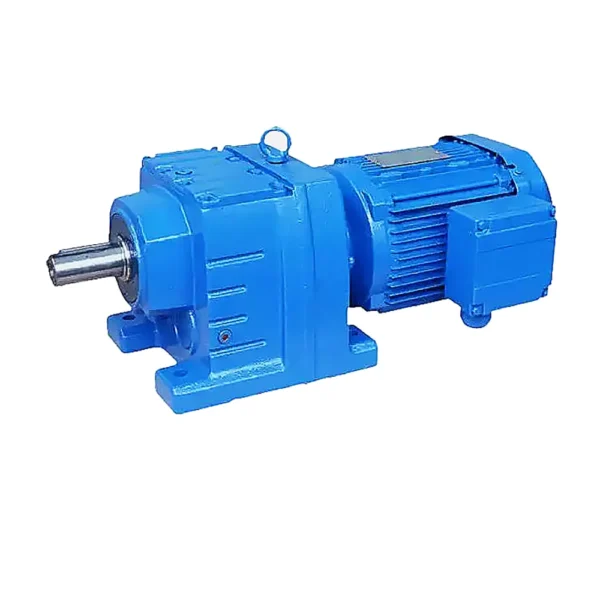

Cylindrical Gear Reducer
The R-series cylindrical gear reducers use hardened involute cylindrical helical gears and can achieve concentric shaft (double-stage, three-stage) and parallel axis transmissions. Working with gear motors or other power input.
Product Overview
The R-series cylindrical gear reducers use hardened involute cylindrical helical gears and can achieve concentric shaft (double-stage, three-stage) and parallel axis transmissions. Working with gear motors or other power input.
Features
1. Small size, easy to work fitting motors and other power input.
2. Tramsmission ratio is high range and tramsmission effeciency is high to 96%, allowing for multi-stage combinations.
3. Connection with motors is customized. Horizontal anywhere or flange connection is avarible.
4. Supports both forward and reverse rotation.
Working Environment
1. Working temperature: -40℃~50℃ (The lubricating oil should be kept above 0℃).
2. Altitude is no more than 1000 m.
3. Input speed is less than 1800RPM, gear speed is less than 22r/s.
Structure

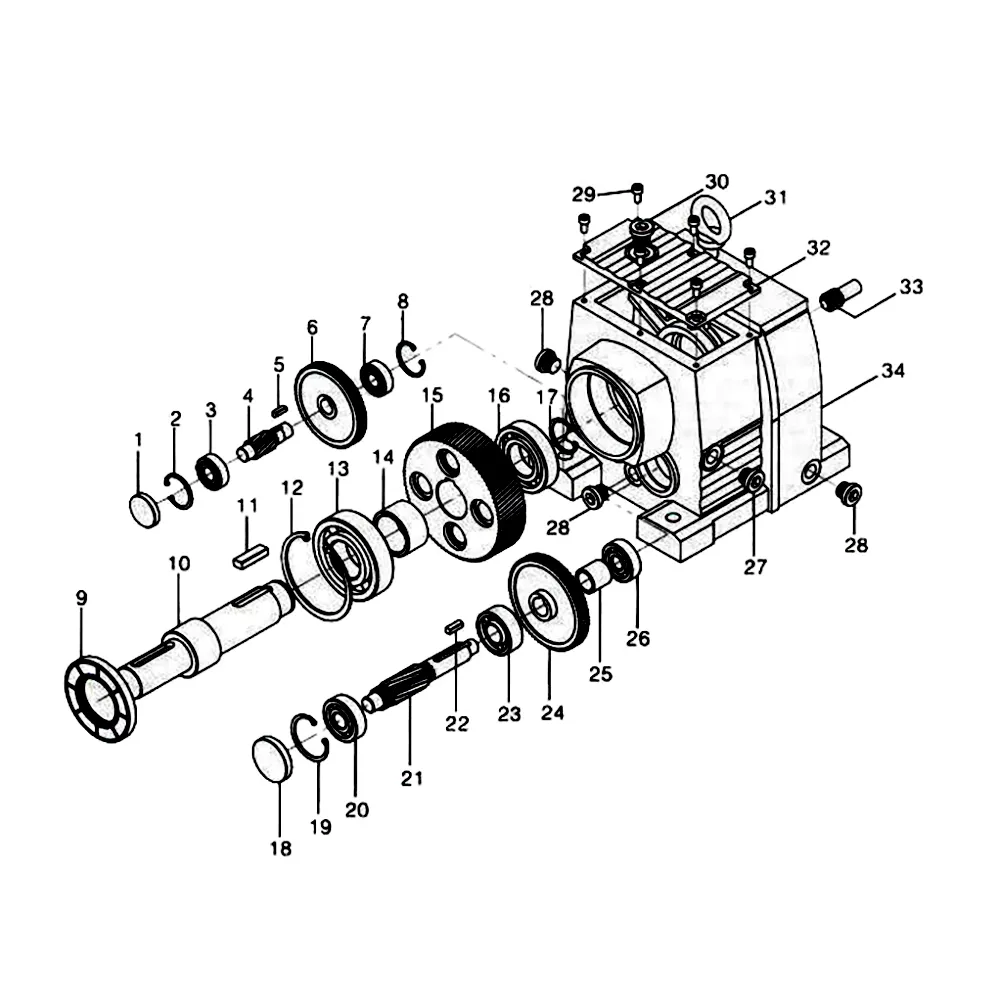

| 1. Grand | 2. Circlip for hole | 3. Bearing | 4. Gear shaft | 5. Key |
| 6. Gear | 7. Bearing | 8. Circlip for hole | 9. Oil seal | 10. Output shaft |
| 11. Key | 12. Circlip for hole | 13. Bearing | 14. Shaft sleeve | 15. Gear |
| 16. Bearing | 17. Circlip for hole | 18. Grand | 19. Circlip for hole | 20. Bearing |
| 21. Gear shaft | 22. Key | 23. Bearing | 24. Gear | 25. Shaft sleeve |
| 26. Bearing | 27. Oil gauge | 28. Oil plug | 29. Screw | 30. Breather |
| 31. Bolt eye | 32. Cover plate | 33. Gear | 34. Housing |
