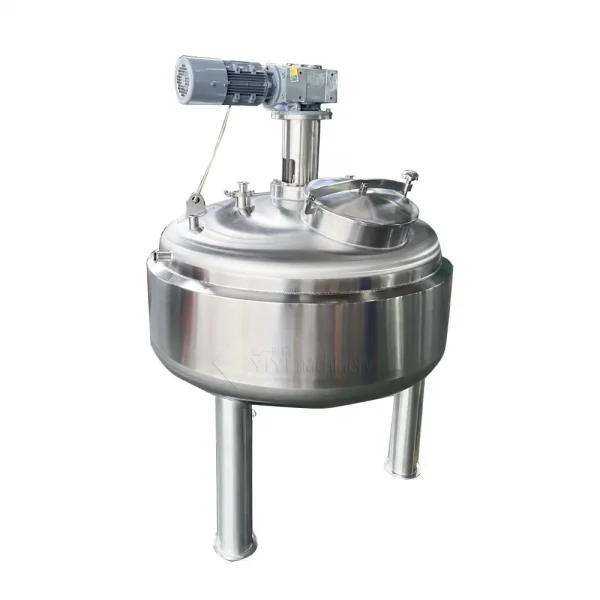

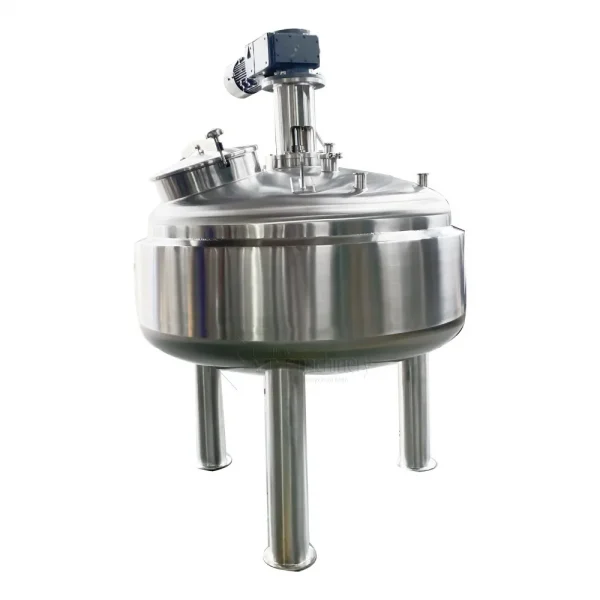

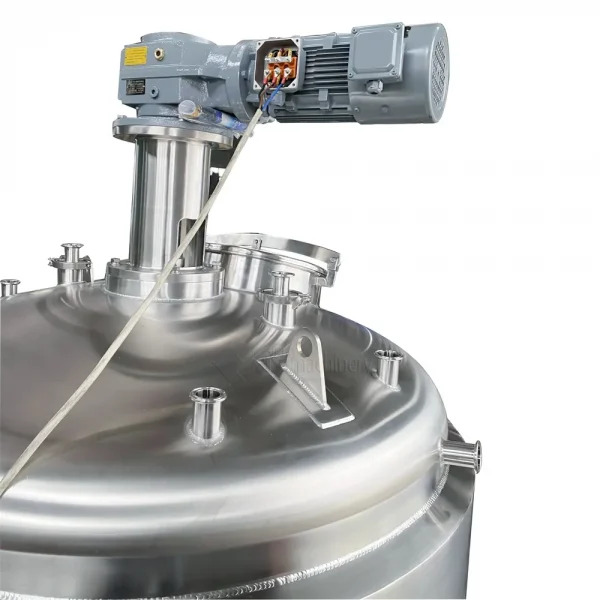

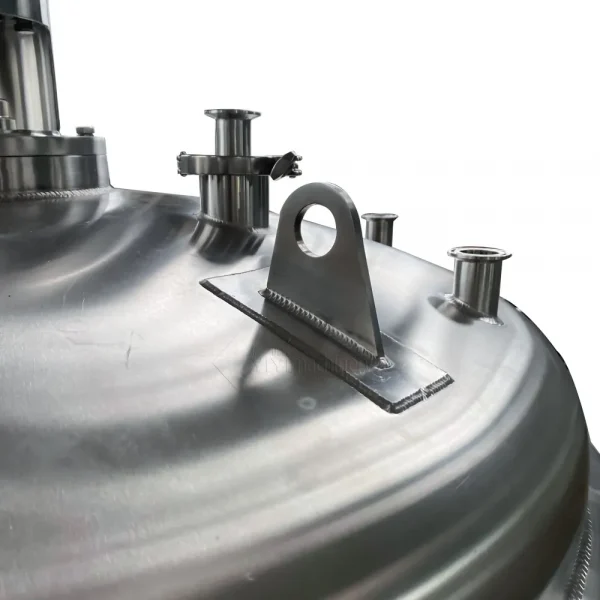

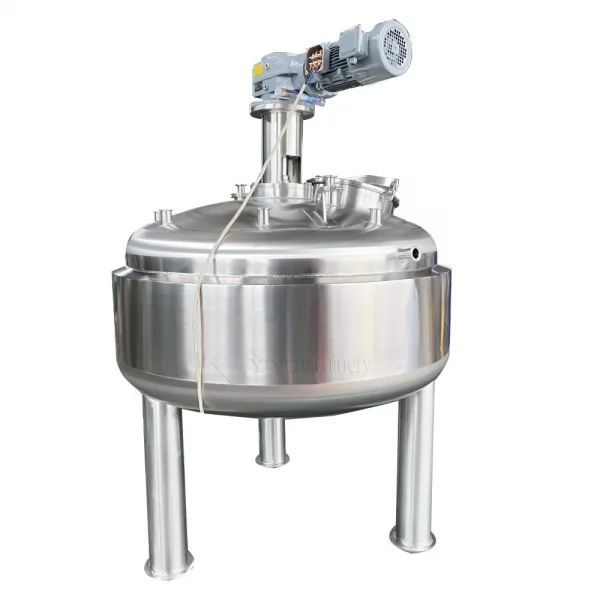

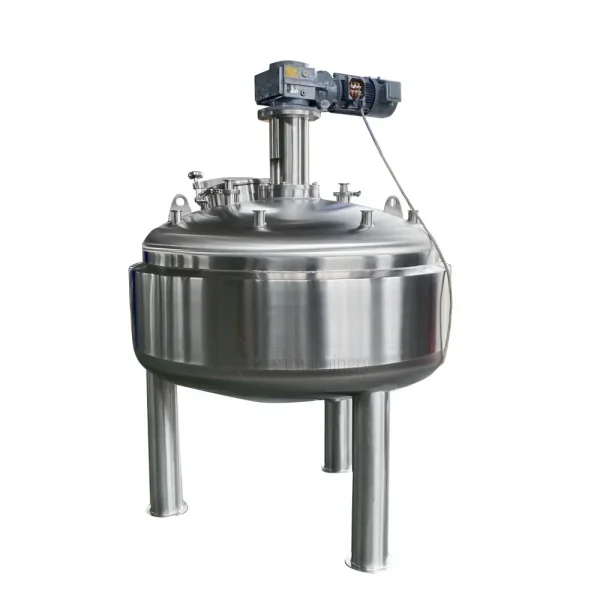

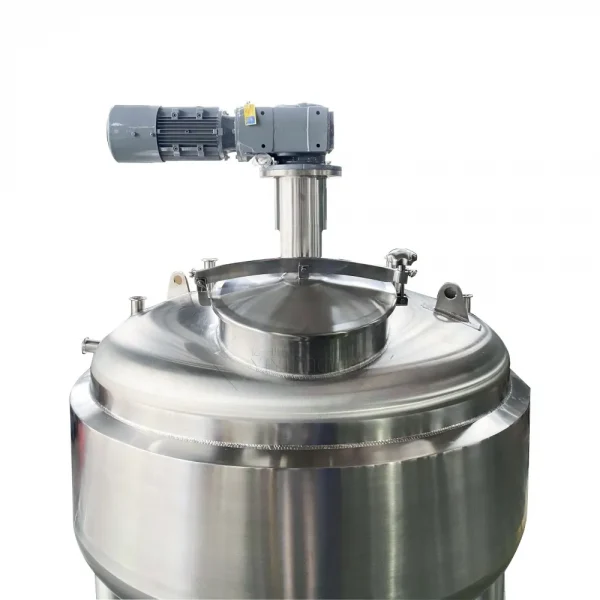

500L mixing tank
Mixing tanks is used to stir, mix, blend, homogenize the materials. They come in various sizes and can be used in kinds of industries such as Coatings, medicine, building materials, chemicals, pigments, resins, food, scientific research.
It is mainly composed of four parts: stainless steel tank body, head, jacket and mixing system.
Options and Agitators
This product offers a variety of optional functions and configurations to meet different process requirements:
The tiltable design facilitates unloading and cleaning.
Integrated control panel for intuitive and convenient operation
A wide selection of mixers is available, including
- frame mixers
- anchor mixers
- scraper mixers
- propeller mixers
- bottom-driven mixers
- dispersion disc mixers
- rotor/stator mixers
- auger mixers
- high-shear mixers
- turbine mixers
- side-entry mixers
- static mixers
- external homogenizers.
- Multiple mixer combinations are also supported.
Heating and cooling methods: Heating or cooling can be achieved using honeycomb jackets or semi-circular tube jackets.
Precise measurement:
- Can be equipped with load cells and level switches
- Cleaning interface for easy online cleaning
- Skid-mounted structure, facilitating overall installation and relocation.
- Multiple surface finish grades are available.
Multiple materials:
- 304 stainless steel
- 316L stainless steel
- duplex stainless steel
Specifications Table
| Model | Volume (L) | Dimensions (mm3) | Motor power (kw) | Speed (r/min) |
| YMT-T-50P | 50 | 400×400×1600 | 0.55 | 120 |
| YMT-T-100P | 100 | 500×500×1700 | 0.75 | 120 |
| YMT-T-200P | 200 | 700×500×1800 | 1.1 | 120 |
| YMT-T-500P | 500 | 9500×1100×2000 | 1.5 | 120 |
| YMT-T-1000P | 1000 | 1000×1200×3300 | 2.2 | 120 |
| YMT-T-2000P | 2000 | 1200×1500×3200 | 3 | 100 |
| YMT-T-5000P | 5000 | 1800×1800×4000 | 5.5 | 36 |
| YMT-T-10000P | 10000 | 2400×3600×6000 | 7.5 | 36 |
