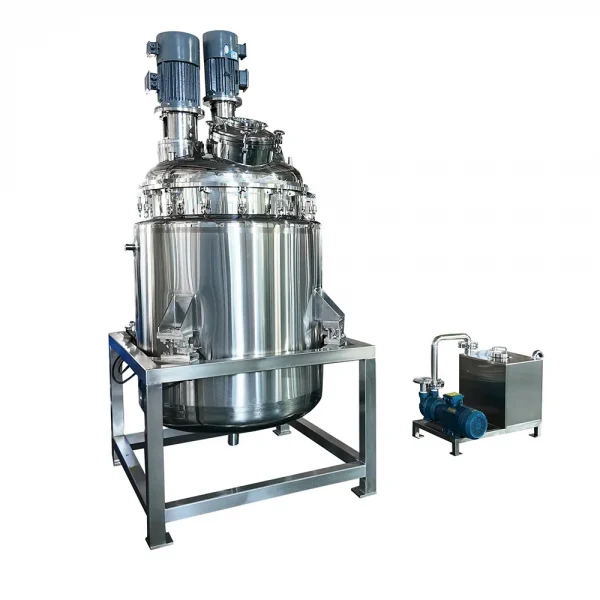

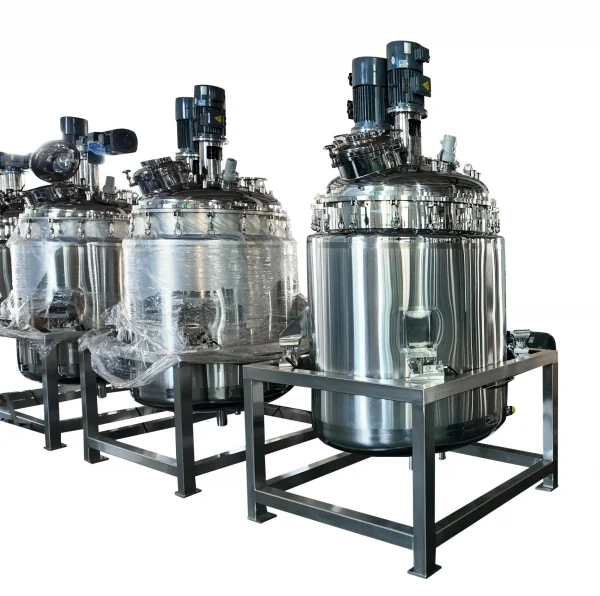

1000L General Purpose Plastic Electric Heating Reactor
The 1000L General Purpose Plastic Electric Heating Reactor is a versatile, corrosion-resistant processing unit designed for low-to-medium pressure reactions in chemical, pharmaceutical, food, and light industry applications. It is especially suitable for processes involving acidic, alkaline, or corrosive materials where metal contamination must be avoided.
Product Overview
The 1000L General Purpose Plastic Electric Heating Reactor is a versatile, corrosion-resistant processing unit designed for low-to-medium pressure reactions in chemical, pharmaceutical, food, and light industry applications. It is especially suitable for processes involving acidic, alkaline, or corrosive materials where metal contamination must be avoided.
Technical Parameters
Body material: SS304, SS316L
Structure: Open-type reactor of flush cover, open welded flange-type reactor and the closed reactor three categories.

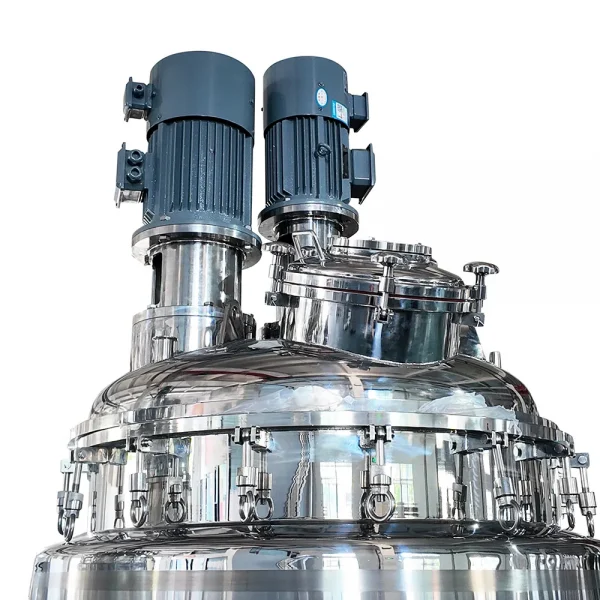

Compose: Body, tank cover, jacket, agitator, transmission, shaft seal device and supporting.
Surface treatment: mirror polishing or wire drawing.
Opention
- Sterile filter
- Thermometer (digital or dial type)
- PH meter
- Sanitary manhole

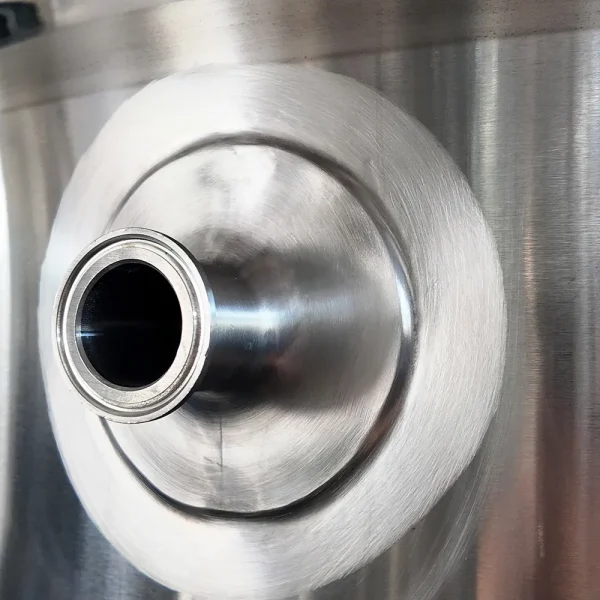

- Outlet
- Cleaning ball
- Pressure meter
- Sterile sampling valve

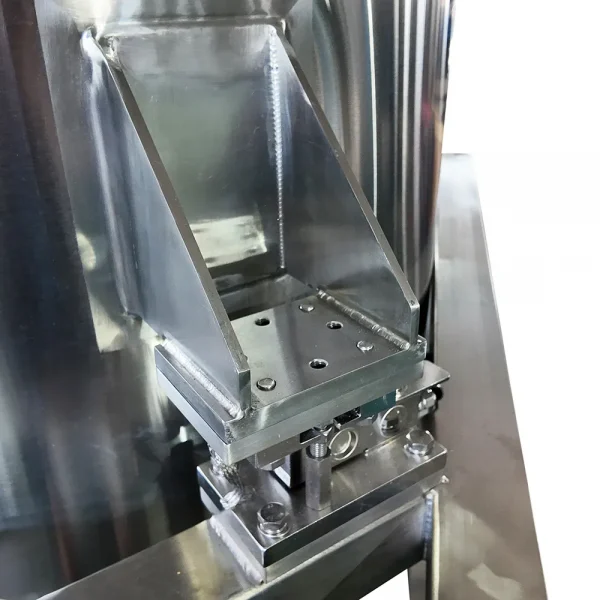

- Level meter and level controller (load-bearing module, contactless ultrasonic, static pressure transmitter)
Technical Specifications
| Model | Volume (L) | Inner pot size (mm) | Outer pot size (mm) | Motor power (KW) | Mixing speed (R/m) |
| YRK-50 | 50 | 400 | 600 | 1.1 | 60-80 |
| YRK-100 | 100 | 500 | 700 | 1.5 | 60-80 |
| YRK-200 | 200 | 600 | 800 | 2.2 | 60-80 |
| YRK-300 | 300 | 700 | 900 | 3 | 60-80 |
| YRK-500 | 500 | 900 | 1100 | 4 | 60-80 |
| YRK-1000 | 1000 | 1200 | 1400 | 5.5 | 60-80 |
| YRK-2000 | 2000 | 1500 | 1700 | 7.5 | 60-80 |
| YRK-3000 | 3000 | 1600 | 1800 | 15 | 60-80 |
| YRK-5000 | 5000 | 1800 | 2000 | 15 | 60-80 |
| YRK-10000 | 10000 | 2000 | 2200 | 18 | 60-80 |
The material and size is customizable. Or tell us your requirements and we will suggest the suitable product.
